Hydrological Model Example#
[1]:
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import MLGLUE
import time as time_module
import warnings
warnings.filterwarnings("ignore")
np.random.seed(1)
Load Data#
data are obtained from Gauch et al. (2020)
hourly time series of hydrological forcing and discharge
[2]:
# load data
df = pd.read_csv(
"./data/forcing.csv",
parse_dates=[0],
usecols=[0, 4, 8, 9],
index_col=0
)
df_flow = pd.read_csv(
"./data/flow.csv",
parse_dates=[0],
usecols=[0, 1, 6],
index_col=0
)
et_data = df.iloc[:, 0]
et_data = np.where(et_data < 0, 0., et_data)
[3]:
# prepare time series
start_, end_ = "2009-10-01", "2010-09-30"
p_series = pd.Series(
data=df.iloc[:, 2],
index=pd.DatetimeIndex(df.index)
).truncate(before=start_, after=end_).interpolate() # mm/d
et_series = pd.Series(
data=et_data,
index=pd.DatetimeIndex(df.index)
).truncate(before=start_, after=end_).interpolate() # mm/d
qout_series = pd.Series(
data=df_flow.iloc[:, 0],
index=pd.DatetimeIndex(df.index)
).truncate(before=start_, after=end_).interpolate() # mm/d
# model info
# steps are needed to select time steps for evaluation / likelihood
# computation
steps = [1, 2, 4]
# instead of pandas series we pass 1D arrays to the model
p_series_euler = p_series.copy().values
pet_series_euler = et_series.copy().values
Create HYMOD Model#
we use the forward Euler method for solving the ODEs
[4]:
def hymod_euler(Precip, PET, smax, beta, alpha, k_slow, k_quick, step=1):
"""
An implementation of the HYMOD model using the forward Euler method to
solve the ODEs.
See here for governing equations:
https://superflexpy.readthedocs.io/en/latest/popular_models.html#hymod
Parameters
----------
Precip : np.ndarray
The precipitation data in the form of a 1D array.
PET : np.ndarray
The potential evapotranspiration data in the form of a 1D array.
smax : float
Maximum storage capacity.
beta : float
Soil storage distribution coefficient.
alpha : float
A fraction (0 <= alpha <= 1) of how much flow to route through the
quick storages. The remaining portion is routed through the slow
storage.
k_slow : float
Storage coefficient of the slow reservoir.
k_quick : float
Storage coefficients of the quick reservoirs.
step : int
The step size of the Euler method.
Returns
-------
outflow : np.ndarray
The computed outflow as 1D array. Has the same length as the input
forcings.
"""
# initialize states
s_upper_zone = 1.
s_slow = 1.
s_quick = [1., 1., 1.]
# initialize global outflow data structure
outflow = []
# get number of time steps
tmax = len(Precip)
# ensure that step is an integer
step = int(step)
# initialize time step
t = 0
while t < tmax:
# compute precipitation excess from upper zone
s_upper_zone, outflow_upper_zone = upper_reservoir_euler(
state = s_upper_zone,
inflow = Precip[t],
pet = PET[t],
beta = beta,
smax = smax,
step = step
)
# split outflow from upper zone
inflow_slow = (1 - alpha) * outflow_upper_zone
inflow_quick = alpha * outflow_upper_zone
# compute slow reservoir contribution to global outflow
s_slow, outflow_slow = linear_reservoir_euler(
state = s_slow,
inflow = inflow_slow,
k = k_slow,
step = step
)
# update global outflow
global_outflow = outflow_slow
# compute contribution of quick reservoir series to global outflow
for n in range(3):
s_quick[n], inflow_quick = linear_reservoir_euler(
state = s_quick[n],
inflow = inflow_quick,
k = k_quick,
step = step
)
# update global outflow
global_outflow += inflow_quick
# save global outflow
outflow.append(global_outflow)
# increment time step index
t += step
return outflow
def linear_reservoir_euler(state, inflow, k, step):
"""
Computes state y_(n+1) from state y_(n) using the Euler method
for a linear reservoir with inflow and storage coefficient k.
Parameters
----------
state : float
The current state y_(n).
inflow : float
The inflow flux [L/T] at time step (n).
k : float
Storage coefficient [1/T].
step : int
The step size of the Euler method.
Returns
-------
new_state : float
The new state y_(n+1).
outflow : float
The outflow from the reservoir.
"""
dSdt = inflow - k * state
outflow = k * state
new_state = state + step * dSdt
if new_state < 0.:
new_state = 0.
if outflow < 0.:
outflow = 0.
return new_state, outflow
def upper_reservoir_euler(state, inflow, pet, beta, smax, step):
"""
Computes state y_(n+1) from state y_(n) using the Euler method
for the HYMOD upper reservoir with inflow, evaporation, maximum
storage height, and distribution coefficient.
Parameters
----------
state : float
The current state y_(n).
inflow : float
The inflow flux [L/T] at time step (n).
pet : float
The potential evapotranspiration flux [L/T] at time step (n).
beta : float
The distribution coefficient.
smax : float
The maximum storage height [L].
step : int
The step size of the Euler method.
Returns
-------
new_state : float
The new state y_(n+1).
outflow : float
The outflow from the reservoir.
"""
s_bar = state / smax
if state - pet > 0.:
pet = pet
else:
pet = pet - state
dSdt = inflow - pet - inflow * (1 - min(1, max(0, (1 - s_bar))) ** beta)
outflow = inflow * (1 - min(1, max(0, (1 - s_bar))) ** beta)
new_state = state + step * dSdt
if new_state < 0.:
new_state = 0.
if outflow < 0.:
outflow = 0.
return new_state, outflow
Create MLGLUE Model Function#
[5]:
def hymod_euler_model(parameters, level, n_levels, run_id):
"""
The model function for MLGLUE.
Parameters
----------
parameters : 1D list-like
The model parameter vector.
level : int
The level index.
n_levels : int
The total number of levels.
obs : 1D list-like
The observations on which to condition the parameters.
likelihood : callable
A callable with a likelihood method with which to compute the
likelihood.
run_id : int
A run identifier.
Returns
-------
likelihood_ : float
Computed likelihood for the current parameter sample.
results : 1D list-like
The model results.
"""
step = 1
if n_levels == 3:
if level == 0:
step = 4
elif level == 1:
step = 2
elif level == 2:
step = 1
elif n_levels == 1:
step = 1
outflow = hymod_euler(
Precip=p_series_euler,
PET=pet_series_euler,
smax=parameters[0],
beta=parameters[1],
alpha=parameters[2],
k_slow=parameters[3],
k_quick=parameters[4],
step=step
)
# resample solution to original frequency via linear interpolation
outflow = pd.Series(
outflow, index=p_series.index[::step]
).reindex(p_series.index).interpolate().values
# if level == 0:
# outflow += .3
# if level == 1:
# outflow += .1
# return None if there are NaN values in sol
if np.any(np.isnan(outflow)):
return None
else:
warmup = 24 * 25
# if we want to have a warmup period like this we have to pass the
# observations to MLGLUE accordingly (without the warmup period),
# otherwise there will be an error because the shapes of
# observations and simulated values don't match
return outflow[warmup:]
MLGLUE without Bias#
[6]:
# MLGLUE
# define likelihood
mylike = MLGLUE.InverseErrorVarianceLikelihood(
threshold=0.1, T=1., weights=None
)
# parameters: [c_max, b_exp, alpha, k_slow, k_quick]
# define warmup
warmup = 24 * 25
mlglue = MLGLUE.MLGLUE(
likelihood=mylike,
model=hymod_euler_model,
upper_bounds=[1000., 2., 1., .1, .5],
lower_bounds=[1., 0.1, 0., 0., 0.],
obs=qout_series.values[warmup:],
n_samples=100_000,
n_levels=3,
multiprocessing=True,
n_processors=None,
tuning=.1,
hierarchy_analysis=False,
include_bias=False
)
samples, liks, results = mlglue.perform_MLGLUE()
print("Shape of samples: ", np.shape(samples))
print("Shape of results: ", np.shape(results))
print("Shape of likelihoods: ", np.shape(liks))
try:
uncertainty_estimates = mlglue.estimate_uncertainty(
quantiles=[0.01, 0.5, 0.99]
)

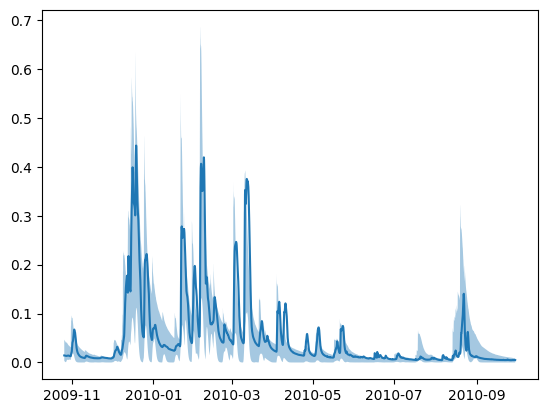

fig, ax = plt.subplots()
ax.plot(
qout_series.index[warmup:],
qout_series.values[warmup:]
)
ax.fill_between(
qout_series.index[warmup:],
uncertainty_estimates[:, 0],
uncertainty_estimates[:, 2],
alpha=0.4
)
except:
pass
No samples provided, using uniform sampling...
2024-11-15 15:51:24,868 INFO worker.py:1819 -- Started a local Ray instance.
Starting tuning with multiprocessing...
Results of variance analysis:
Correlation between subsequent levels (from lowest to highest level):
0.90886 (level 0, level 1)
0.99581 (level 1, level 2)
Note: those values should INCREASE with increasing level indices!
Variances of likelihoods on all levels (from lowest to highest level):
6881.09207 (level 0)
7964.25829 (level 1)
9189.69970 (level 2)
Note: those values should be approximately constant across all levels!
The var. inequality holds between levels 0 and 1: 7964.25829 >= 1.38901e+03
The var. inequality holds between levels 1 and 2: 9189.69970 >= 1.15541e+02
The variance inequality holds between all two subsequent levels!
The cross-level variance decays monotonically!
Results of mean value analysis:
Mean values of the difference between likelihoods on subsequent levels (from lowest to highest level):
35.43896 (level 0, level 1)
2.79547 (level 1, level 2)
Note: those values should DECREASE with increasing level indices!
Mean values of the likelihoods on all levels (from lowest highest level):
114.02973 (level 0)
149.46868 (level 1)
152.26416 (level 2)
Note: those values should be approximately constant across all levels!
The mean value ineq. holds between levels 0 and 1: 149.46868 >= 3.54390e+01
The mean value ineq. holds between levels 1 and 2: 152.26416 >= 2.79547e+00
The mean value inequality holds between all two subsequent levels!
The cross-level mean value decays monotonically!
The calculated thresholds are: [215.78536651 245.15414222 251.43546444]
2024-11-15 15:55:43,025 INFO worker.py:1819 -- Started a local Ray instance.
Starting sampling with multiprocessing...
Sampling finished.
Shape of samples: (7782, 5)
Shape of results: (7782, 8137)
Shape of likelihoods: (7782,)
shape of values: (7782, 8137)
[7]:

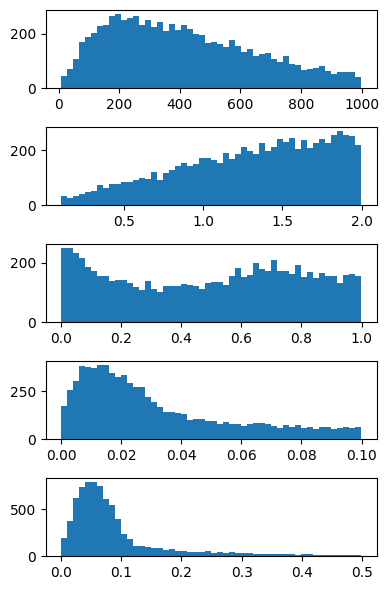

try:
fig, ax = plt.subplots(nrows=5, figsize=(4, 6))
for i in range(5):
ax[i].hist(np.array(samples)[:, i], 50)
plt.tight_layout()
except:
pass
MLGLUE with Bias#
[8]:
# MLGLUE
# define likelihood
mylike = MLGLUE.InverseErrorVarianceLikelihood(
threshold=0.1, T=1., weights=None
)
# parameters: [c_max, b_exp, alpha, k_slow, k_quick]
mlglue = MLGLUE.MLGLUE(
likelihood=mylike,
model=hymod_euler_model,
upper_bounds=[1000., 2., 1., .1, .5],
lower_bounds=[1., 0.1, 0., 0., 0.],
obs=qout_series.values[warmup:],
n_samples=100_000,
n_levels=3,
multiprocessing=True,
n_processors=None,
tuning=.1,
hierarchy_analysis=False,
include_bias=True
)
samples, liks, results = mlglue.perform_MLGLUE()
print("Shape of samples: ", np.shape(samples))
print("Shape of results: ", np.shape(results))
print("Shape of likelihoods: ", np.shape(liks))
try:
uncertainty_estimates = mlglue.estimate_uncertainty(
quantiles=[0.01, 0.5, 0.99]
)
fig, ax = plt.subplots()
ax.plot(
qout_series.index[warmup:],
qout_series.values[warmup:]
)
ax.fill_between(
qout_series.index[warmup:],
uncertainty_estimates[:, 0],
uncertainty_estimates[:, 2],
alpha=0.4
)
except:
pass
No samples provided, using uniform sampling...
2024-11-15 16:01:24,433 INFO worker.py:1819 -- Started a local Ray instance.
Starting tuning with multiprocessing...
Results of variance analysis:
Correlation between subsequent levels (from lowest to highest level):
0.91197 (level 0, level 1)
0.99602 (level 1, level 2)
Note: those values should INCREASE with increasing level indices!
Variances of likelihoods on all levels (from lowest to highest level):
6975.31596 (level 0)
7971.06059 (level 1)
9187.94347 (level 2)
Note: those values should be approximately constant across all levels!
The var. inequality holds between levels 0 and 1: 7971.06059 >= 1.34608e+03
The var. inequality holds between levels 1 and 2: 9187.94347 >= 1.11367e+02
The variance inequality holds between all two subsequent levels!
The cross-level variance decays monotonically!
Results of mean value analysis:
Mean values of the difference between likelihoods on subsequent levels (from lowest to highest level):
35.39100 (level 0, level 1)
2.86018 (level 1, level 2)
Note: those values should DECREASE with increasing level indices!
Mean values of the likelihoods on all levels (from lowest highest level):
113.16568 (level 0)
148.55668 (level 1)
151.41686 (level 2)
Note: those values should be approximately constant across all levels!
The mean value ineq. holds between levels 0 and 1: 148.55668 >= 3.53910e+01
The mean value ineq. holds between levels 1 and 2: 151.41686 >= 2.86018e+00
The mean value inequality holds between all two subsequent levels!
The cross-level mean value decays monotonically!
The calculated thresholds are: [217.33368468 241.95103081 250.98548412]
The calculated thresholds are: [180.18633293 226.90794387 250.98548412]
2024-11-15 16:05:47,430 INFO worker.py:1819 -- Started a local Ray instance.
Starting sampling with multiprocessing...
Sampling finished.
Shape of samples: (7585, 5)
Shape of results: (7585, 8137)
Shape of likelihoods: (7585,)
shape of values: (7585, 8137)
[9]:

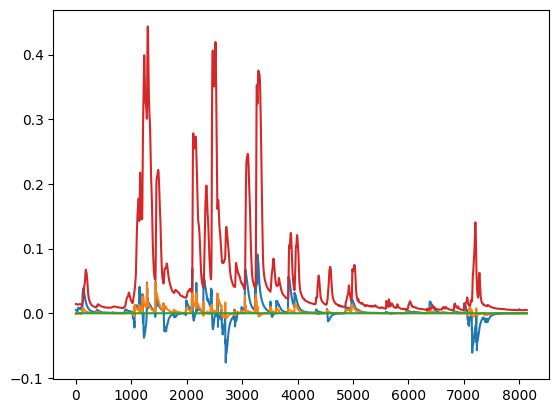

fig, ax = plt.subplots()
ax.plot(mlglue.bias[0])
ax.plot(mlglue.bias[1])
ax.plot(mlglue.bias[2])
ax.plot(
qout_series.values[warmup:]
)
[9]:
[<matplotlib.lines.Line2D at 0x1e79e51ee90>]
[10]:

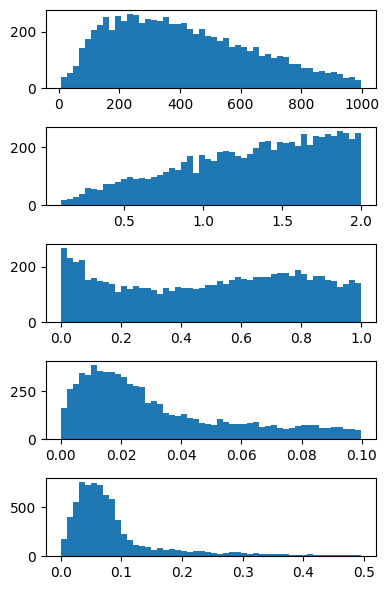

try:
fig, ax = plt.subplots(nrows=5, figsize=(4, 6))
for i in range(5):
ax[i].hist(np.array(samples)[:, i], 50)
plt.tight_layout()
except:
pass
